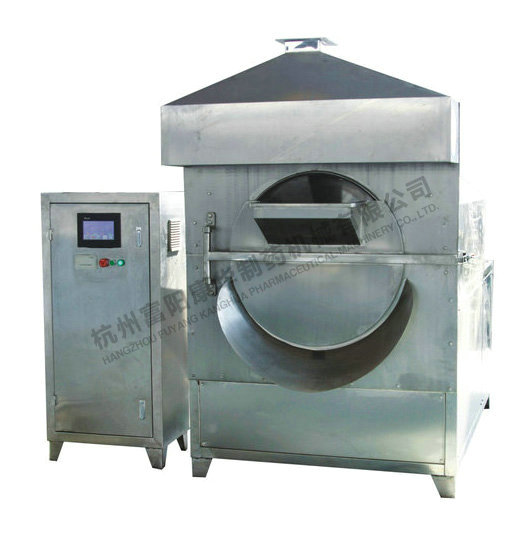

CY CNC medicine-parching machine (electromagnetic heating)

CY CNC medicine-parching machine (electromagnetic heating)





Product Video


Detail



Main uses:

The product is widely used in Chinese herbal medicine health care product factory, decoction piece factory, hospitcal, and food industry for frying and processing traditional Chinese medicinal materials and subsidiary agricultural products of various specifications and properties.

Features:

Stable mechanical performance, compact structure, attractive appearance, easy to use, energy saving, bright and uniform color. It is ideal product for frying and processing. It can meet the requirement of GMP.



Main technical parameters:

Model



Capacity

(kg/h)

Size of inner tube

(mm)

Power

(kw)

Energy consumption

Dimension

(mm)

Ways of speed regulation



Weight

(kg)

CY-500

15-60

Φ500

2.2

Coal consumption 5kg

Oil consumption 5kg

Steam consumption 2kg

1820×800×1550

Electromagnetic stepless speed regulation

Electromagnetic stepless speed regulation

500

CY-500

15-70

Φ500

21.1

Electricity consumption 14kw

1930×1050×1770

500

CY-700

20- 100

Φ700

2.5

Coal consumption 15kg

Oil consumption 8kg

Steam consumption 3kg

2060×1200×1910

750

CY-700

20- 120

Φ700

31.5

Electricity consumption 21kw

2100×1200×2000

560

CY-900

35- 150

Φ900

3.3

Coal consumption 20kw

Oil consumption 9kg

Steam consumption 5kg

2180×1210×1930

950

CY-900

35-160

Φ900

42.2

Electricity consumption 30kw

2200×1400×2000

750
