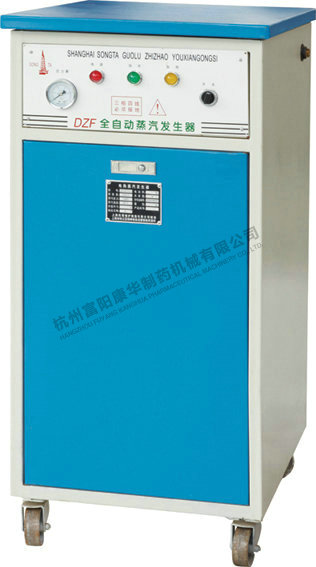

Automatic electric steam generator

Automatic electric steam generator





Product Video


Detail



Main uses:

This series of automatic electric steam generators provide full steam iron and electrical heating steam iron with pressure ranging from 0.25 Mpa to 0.4 Mpa. It is ideal vapour source for steam heating equipment, for hospitals, hotels and food, and other industries.

Features:

Water inlet adopts copper-made high-pressure pump to ensure short water supply time and favorable durability. The water tank controls the quantity of water intake. The working system controls the machine automatically. It can export steam continuously 10 minutes after turning on the machine. It meets the requirement of GMP.



Main technical parameters:

Model

Working voltage

(V)

Power of motor

(kw)

Heating power

(kw)

Vapor pressure

(MPa)

Gas output

(Kg/h)

Dimension

(mm)

Weight

(kg)

LZ0.03-0.4-D

380

0.55

24

0.25-0.4

30

660×550×1200

96

LZ0.024-0.4-D

380

0.55

36

0.25-0.7

51

750×546×1090

150
